mcneil Instrument manufacturer of Aluminium Wire Mesh in India

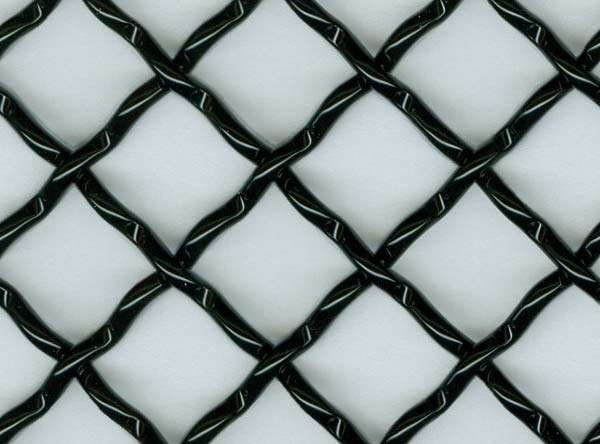

Aluminium Wire Mesh is made with aluminium wire with fetures like high strength, corrosion resistant and sturdiness. It is used majorly against flies and mosquitoes, machinery protection, ventilation material and receiving signals as it Is lightweight and strong and has high electrical conductivity. Aluminum woven wire mesh is a popular choice for a wide array of industries including aerospace and automotive, as well as marine and electrical conductivity applications.
These meshes are manufactured with the aid of modern machinery and technology that is installed at our infrastructure facility. Post-production, these meshes are checked rigorously on various parameters to ensure flawlessness. These Aluminium Wire Mesh are available from us at extremely affordable and suitable pricing.
What is Aluminium Wire Mesh?
Aluminium wire mesh is constructed using aluminium alloy wires that are woven or welded into a mesh pattern. Aluminium itself is a lightweight metal known for its corrosion resistance and durability, making aluminium wire mesh suitable for various applications both indoors and outdoors.
Characteristics of Aluminium Wire Mesh
Aluminium wire mesh possesses several key characteristics:
- Lightweight: Aluminium is lightweight, making the wire mesh easy to handle, install, and transport.
- Corrosion Resistance: Aluminium naturally forms a protective oxide layer that prevents corrosion, making it suitable for outdoor applications.
- High Strength: Despite its lightweight nature, aluminium wire mesh offers high tensile strength and durability.
- Non-Magnetic: Aluminium is non-magnetic, which can be advantageous in certain applications.
- Aesthetic Appeal: It has a metallic finish that can be aesthetically pleasing, often used in architectural and decorative applications.
How is Aluminium Wire Mesh Used?
Aluminium wire mesh finds various applications across different industries and uses:
- Insect Screening: Used in windows, doors, and vents to keep insects out while allowing airflow.
- Filtration: Utilized in air and liquid filtration systems due to its fine mesh openings.
- Security: Used for security screens and barriers in residential and commercial buildings.
- Decorative Applications: Used in interior design for decorative purposes such as room dividers, ceilings, and wall panels.
- Industrial Uses: Applied in industrial settings for sieving, sorting, and separating materials.
Specifications of Aluminium Wire Mesh
| Specification | Details |
|---|---|
| Mesh | 18×14, 18×16, 14×14 (Customized as per requirement) |
| Material | Aluminum Alloy Wire |
| Available Widths | 2ft, 2.5ft, 3ft, 3.5ft, 3.75ft, 4ft, 4.5ft, 5ft |
| Length/ Roll | 30 Meters (Customized as per requirement) |
| Finish | Aluminum Finish, Stainless Steel Finish |
| Packaging | One Roll Per Cardboard |
This table summarizes the specifications of aluminum wire mesh, including mesh options, material, available widths, roll length, finish options, and packaging details.
Weld Mesh Thickness Chart
| Width in mm | Length in mm | Thickness in mm | Hole Diameter in mm | Pitch Center to Center in mm |
|---|---|---|---|---|
| 4′ (1,219) | 8′ (2,438) | 0.7 | 3 | 5 |
| 4′ (1,219) | 8′ (2,438) | 1.0 | 1.5 | 2.5 |
| 4′ (1,219) | 8′ (2,438) | 1.0 | 3 | 5 |
| 4′ (1,219) | 8′ (2,438) | 1.0 | 4 | 7 |
| 4′ (1,219) | 8′ (2,438) | 1.2 | 3 | 5 |
| 4′ (1,219) | 8′ (2,438) | 1.2 | 4 | 7 |
| 4′ (1,219) | 8′ (2,438) | 1.2 | 6 | 10 |
| 4′ (1,219) | 8′ (2,438) | 1.2 | 8 | 12 |
| 4′ (1,219) | 8′ (2,438) | 1.2 | 10 | 15 |
| 4′ (1,219) | 8′ (2,438) | 1.5 | 3 | 5 |
| 4′ (1,219) | 8′ (2,438) | 1.5 | 6 | 10 |
| 4′ (1,219) | 8′ (2,438) | 1.5 | 8 | 12 |
| 4′ (1,219) | 8′ (2,438) | 1.5 | 10 | 15 |
| 4′ (1,219) | 8′ (2,438) | 1.5 | 12 | 18 |
| 4′ (1,219) | 8′ (2,438) | 2.0 | 3 | 5 |
| 4′ (1,219) | 8′ (2,438) | 2.0 | 6 | 10 |
| 4′ (1,219) | 8′ (2,438) | 2.0 | 8 | 12 |
| 4′ (1,219) | 8′ (2,438) | 2.0 | 10 | 15 |
| 4′ (1,219) | 8′ (2,438) | 2.0 | 15 | 21 |
| 4′ (1,219) | 8′ (2,438) | 2.0 | 20 | 30 |
| 4′ (1,219) | 8′ (2,438) | 3.0 | 3 | 5 |
| 4′ (1,219) | 8′ (2,438) | 3.0 | 6 | 10 |
| 4′ (1,219) | 8′ (2,438) | 3.0 | 10 | 15 |
| 4′ (1,219) | 8′ (2,438) | 3.0 | 12 | 18 |
Advantages of Aluminium Wire Mesh
Using aluminium wire mesh offers several advantages:
- Durability: Resistant to rust and corrosion, providing long-term reliability.
- Lightweight: Easy to handle and install, reducing installation time and costs.
- Versatility: Available in various mesh sizes and wire diameters to suit different applications.
- Low Maintenance: Requires minimal upkeep compared to other metal meshes.
- Recyclability: Aluminium is highly recyclable, making it an environmentally friendly choice.
Supplier of Aluminium Wire Mesh in all over india
Aluminium wire mesh is a sheet of simple square-woven mesh made from aluminium wire of the highest quality. Similar to stainless steel mesh in terms of corrosion resistance, but more lighter and softer.
Aluminium wire mesh is ideal for lightweight screening applications like air vents and personal audio headsets since it weighs around one-third as little as stainless steel mesh with the same requirements.
Exporter of High-Quality Aluminium Wire Mesh in india
All our products are designed and developed using high-grade raw material and latest technology to ensure that final output meets with international quality norms & standards. Moreover, we check all products on various parameters to assure zero defect.Aluminum wire mesh is a versatile and durable material commonly used in various applications. Due to its lightweight and corrosion-resistant properties, it is ideal for outdoor purposes, such as insect screens and ventilation grilles. Additionally, the mesh finds utility in industrial settings, where it serves as a reliable filtration medium and shielding material for electromagnetic interference. Its malleability allows for easy customization, making it a popular choice for creative and architectural projects. Overall, aluminum wire mesh offers a balance of strength and flexibility, making it an excellent option across multiple industries.
- Size : Any
- Width : 105cm
- Material : Aluminum
- Better filtration
- Meets challenging industrial demands
- Versatile
- Wide range of applications
- Cement industry
- Food processing
- Mineral industry
- Construction site
- Fertilizer industry
UAE, Bahrain, Italy, Indonesia, Malaysia, United States, China, Brazil, Nigeria, Kuwait, Dubai, Iran, Germany, UK, Canada, Russia, Australia, Sri Lanka, Vietnam, Turkey, New Zealand, South Africa, Kazakhstan, Saudi Arabia etc…
- You can get the perfect material according to your requirement at the least possible price.
- We have many years of experience in this field as we serve the highest level of quality.
- The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
- e-guarantee to give a response within 24hours(usually in the same hour)
- You can get stock alternatives, mill deliveries with minimizing manufacturing time.
- We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
