Flanges play a pivotal role in connecting pipes, valves, and other equipment in a wide array of industries, including oil and gas, petrochemicals, power plants, and construction. At Mcneil Instrument, we are one of the leading Flanges Manufacturers in India, offering a wide range of high-quality flanges to meet the needs of industries worldwide. In this blog, we’ll explore everything you need to know about flanges, including their types, uses, standards, materials, and more.
Mcneil Instrument is a leading manufacturer, supplier, and exporter of high-quality Flanges in India. Our flanges are designed to meet the stringent demands of various industries, ensuring reliable and efficient connections.
What Exactly is a Flange?
A flange is a ring-shaped component that is attached to the end of a pipe, valve, or pump. It provides a surface for bolting together two or more components, creating a sealed joint.
A flange is a mechanical component used to join pipes, valves, pumps, or other equipment. It provides a reliable, detachable connection that facilitates inspection, modification, or maintenance. Flanges are commonly used in systems where strength, durability, and a secure seal are critical.
How Are Flanges Connected?
Flanges are typically connected using bolts and gaskets to create a secure seal. They are welded or screwed to pipes or equipment, ensuring the system remains leak-proof under pressure. Proper alignment and torque application are crucial for efficient installation and maintenance of flanges.

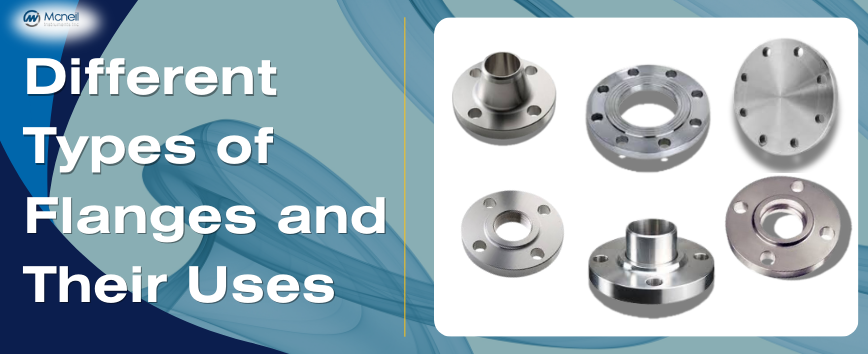

Types of Flanges Available
Mcneil Instruments offers a diverse range of flanges to cater to various industrial needs. Here’s a breakdown of the most common types of flanges and their uses:
1. Weld Neck Flanges: These flanges are designed with a long tapered hub that provides excellent stress distribution and are welded directly to the pipe. They are ideal for high-pressure and high-temperature applications.
2. Slip-On Flanges: Slip-on flanges slide over the pipe and are then welded to ensure a secure fit. They are economical and easy to install, making them suitable for low-pressure systems.
3. Socket Weld Flanges: Socket weld flanges are used for small-sized, high-pressure piping systems. The pipe is inserted into the socket, providing a smooth bore and excellent strength.
4. Blind Flanges: Blind flanges are used to seal the ends of pipes or equipment. They provide easy access for inspections or modifications while maintaining system integrity.
5. Lap Joint Flanges: Lap joint flanges work in conjunction with stub ends, providing a loose connection. They are used where frequent disassembly is required.
6. Threaded Flanges: Threaded flanges are connected by screwing the pipe into the flange without welding. They are suitable for low-pressure systems and applications with flammable substances.
7. Ring Type Joint (RTJ) Flanges: RTJ flanges are designed with grooves to accommodate a metal ring gasket, ensuring a leak-proof seal in high-pressure and high-temperature environments.
Special Types of Flanges
| Type | Description |
| Spectacle Blind | Used to isolate or bypass pipe sections during maintenance. |
| Orifice Flanges | Used in flow measurement applications. |
| Long Weld Neck | Provide added strength for critical applications. |
| Expander Flanges | Used to connect pipes of varying diameters. |
| Reducing Flanges | Facilitate transitions between different pipe sizes. |
Flanges by Material Grade
Flanges are available in a variety of materials to suit different industrial environments. Common materials include:
| Material | Applications |
| Stainless Steel | Corrosion-resistant, ideal for harsh environments. |
| Carbon Steel | Economical and suitable for general applications. |
| Alloy Steel | High strength and resistance to extreme conditions. |
| Duplex Steel | Combines corrosion resistance with strength. |
| Nickel Alloys | Excellent resistance to chemicals and acids. |
Flanges by Face Type
The face type of a flange determines the sealing surface. Common face types include:
- Flat Face (FF): Suitable for low-pressure applications.
- Raised Face (RF): The most common, used for enhanced sealing.
- Ring Joint (RTJ): Ideal for high-pressure and high-temperature conditions.
Flanges by Finish
The finish of a flange affects the gasket’s ability to seal. Typical finishes include:
- Smooth Finish: Used in low-pressure systems.
- Serrated Finish: Ensures better gasket grip in high-pressure systems.
Flange Standards and Ratings
Flanges must adhere to specific standards to ensure compatibility and reliability. Mcneil Instruments manufactures flanges that comply with:
| Category | Details |
| Standards for Dimensions | ASTM, ASME, ANSI standards ensure compatibility and material reliability. |
| Industry Compliance | KOC Approved, ADNOC Approved, Saudi Aramco Approved, Takreer Approved, BP Approved, PDO, Approved, Technip Approved, Sabic Approved, Petro Rabigh Approved, KNPC Approved, Lamprell Approved, Qatar Gas Approved, Qatar Petroleum Flanges Approved, Gpic Flanges Approved. |
| Pressure Ratings | Flanges available in pressure ratings from Class 150 to Class 2500 for diverse needs. |
| Common Flange Standards | ASME B16.5: Pipe flanges and fittings; ANSI B16.5: ANSI standards for pipe flanges. |
| DIN: German standard for flanges and fittings; JIS: Japanese Industrial Standard. | |
| Flange Ratings | Define maximum pressure and temperature a flange can withstand under specified conditions. |
Flange Gaskets
Gaskets are crucial for ensuring a tight seal between flanges. Common types include:
- Metallic Gaskets: Used for high-pressure applications.
- Non-Metallic Gaskets: Suitable for low-pressure systems.
- Composite Gaskets: Offer a balance of strength and flexibility.
Flange Installation and Maintenance
Proper installation and maintenance of flanges are crucial to ensure their performance and safety. Key considerations include:
- Bolt Torque: Ensuring proper bolt torque to prevent leaks.
- Gasket Selection: Choosing the right gasket material for the specific application.
- Alignment: Correct alignment of the flanges to avoid stress and leaks.
- Regular Inspection: Inspecting flanges for signs of wear, corrosion, or damage.
Flange Design Considerations
When choosing a flange, consider factors such as pressure rating, material compatibility, temperature conditions, and the intended application. For high-stress environments, opt for weld neck or RTJ flanges, while slip-on or threaded flanges work well for less demanding applications.
FAQs About Flanges
Q: What is the purpose of a flange?
A: Flanges are used to connect pipes, valves, and equipment securely, allowing for maintenance or modifications.
Q: How do I select the right flange material?
A: Consider factors like operating pressure, temperature, and corrosion resistance. Stainless steel flanges are ideal for harsh environments.
Q: What are the common flange standards?
A: Flanges are manufactured to standards such as ASME B16.5 and ASTM A182, ensuring quality and compatibility.
Conclusion
Flanges are an indispensable component in industrial piping systems, offering reliable connectivity, strength, and versatility. At Mcneil Instrument, a trusted name among flanges manufacturers, suppliers, and exporters in India, we deliver top-quality flanges that meet global standards, including Saudi Aramco Approved Flanges and Qatar Petroleum Flanges. Contact us today to find the perfect flange solution for your needs!
